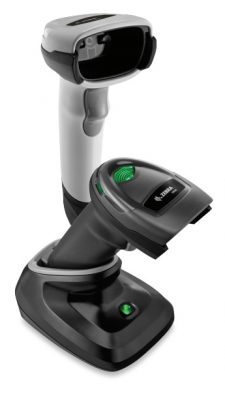

ZEBRA DS2200 Series

• Decode Capabilities: 1D bar codes
• Print Contrast: 15% minimum reflective difference
• Light Source: Aiming Pattern: Two (2) 617nm Amber LEDs
• Image Sensor: 1,500 pixels
• Supported Host Interfaces: USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Corded Version: LI3608
• Cordless Version: LI3678

• Decode Capabilities: 1D/2D bar code
• Image Sensor: 1,280 x 960 pixels
• Print Contrast: 15% minimum reflective difference
• Light Source: Aiming Pattern: Two (2) warm white light LEDs
• Supported Host Interfaces: USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Corded Version: DS3608-HD
• Cordless Version: DS3678-HD

• Decode Capabilities: 1D/2D bar code
• Image Sensor: 1,280 x 960 pixels
• Print Contrast: 15% minimum reflective difference
• Light Source: Aiming Pattern: Two (2) warm white light LEDs
• Supported Host Interfaces: USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Corded Version: DS3608-HD
• Cordless Version: DS3678-HD

• Decode Capabilities: 1D/2D bar code
• Image Sensor: 1,280 x 800 (1 Megapixel)
• Print Contrast: 25% minimum reflective difference
• Light Source: Aiming Pattern: One 660 nm LED
• Supported Host Interfaces: USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Corded Version: DS3608-ER
• Cordless Version: DS3678-ER

• Decode Capability: 1D and 2D symbologies
• Memory: 512 MB Flash
• Scan Engine: SE4710 image engine

• Decode Capabilities: 1D & 2D
• Light Source: LED Class 1 device 617nm (amber)
• Min Print Contrast: 15% min reflective difference
• Min Resolution: 3.0mil
• Supported Host Interfaces: USB, RS232, Keyboard Wedge and IBM RS485

Wireless model : (2D) MJ-6708DA (Wifi only); MJ-6708DB (Bluetooth + Wifi) Wired model : (2D) MJ-6708D; (1D) MJ-6708C Interfaces: USB Wireless: Bluetooth + 2.4GHz Wifi Battery: 1800mAh rechargeable Compatible with Android, iOS & Windows

• Decode Capabilities: 1D & 2D
• Sensor Resolution 752 (H) x 480 (V) gray scale
• Min Print Contrast: Minimum 25% absolute dark/light reflectance
• Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over, RS485

Wearable Ring Scanner Decode: 1D / 2D Option Source: Laser 1D / CMOS 2D Interfaces: Micro USB Wireless: Bluetooth Category: Mini and Wearable, Compatible with Android, iOS & Windows

• Decode Capabilities: 1D/2D bar code
• Image Sensor: 1,280 x 800 (1 Megapixel)
• Print Contrast: 25% minimum reflective difference
• Light Source: Aiming Pattern: One 660 nm LED
• Supported Host Interfaces: USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
• Corded Version: DS3608-ER
• Cordless Version: DS3678-ER

Type : Fixed Mount Scanner Decode : 1D / 2D Interfaces: USB / RS232 Wireless: N/A Scan Mode: Auto-sense trigger, Serial commands

• Scanner Type: Bi-directional
• Scan Rate: 100 scans per second
• Light Source (Laser): 650 nm visible laser diode
• Min Print Contrast: 20% minimum reflective difference
• Supported Host Interfaces: USB, RS232, Keyboard Wedge, IBM 468x/9x
